MACD

World Model Learning

MAMBA reconstructs local information in a decentralized manner. Consequently, the agent’s latent state contains solely local information. While MACD reconstructs global information in a centralized manner

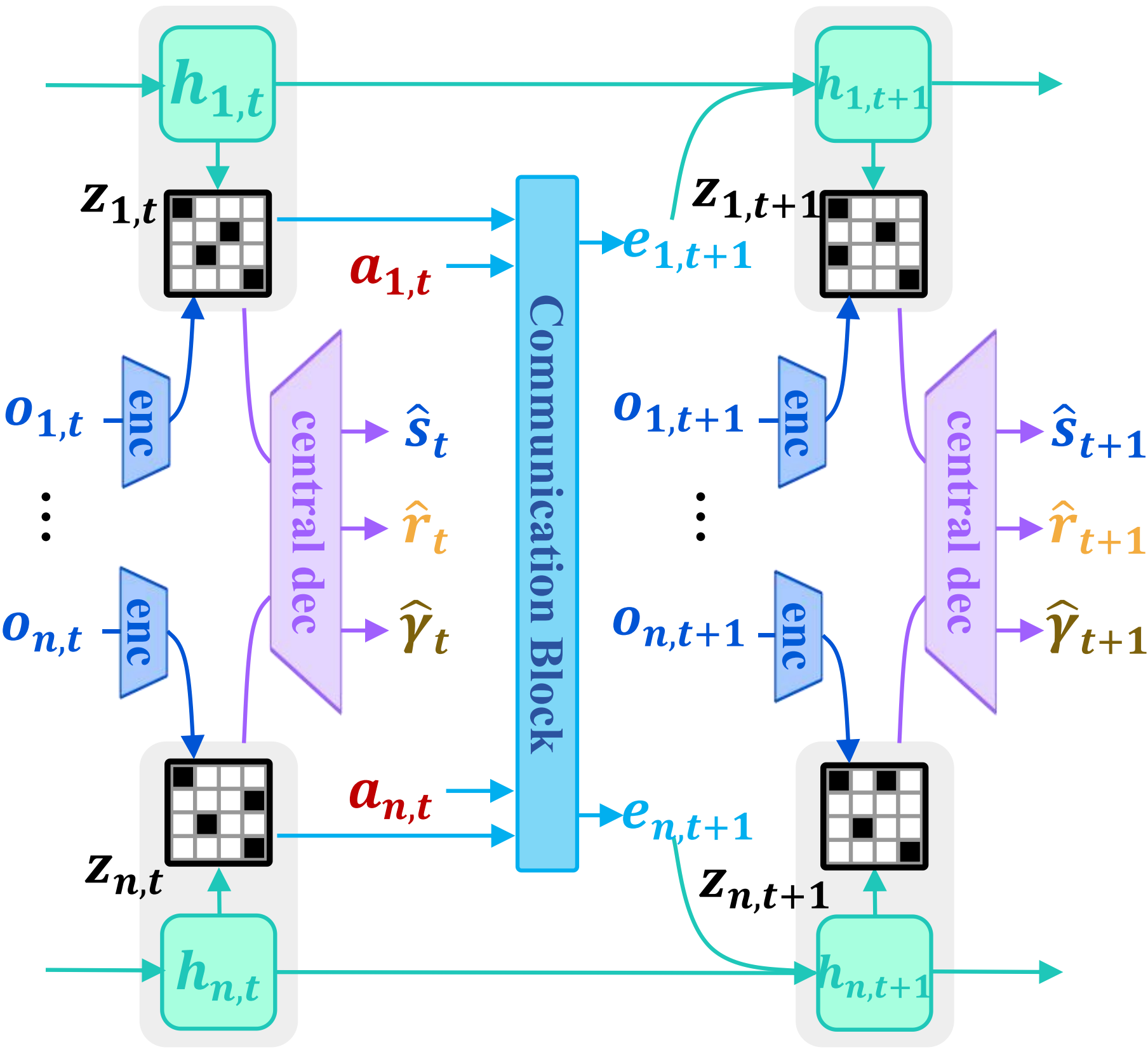

Model	Type	Definition	Distribution Family
Recurrent Model	Generation	$h_{t}^{i} = f_{\phi}(h_{t - 1}^{i},\ e_{t}^{i})$	Deterministic
Communication Block	Generation	$e_{t} = g_{\phi}(z_{t - 1},\ a_{t - 1})$	Deterministic
Representation Model	Inference	$z_{t}^{i} \sim q_{\phi}(z_{t}^{i} \mid h_{t}^{i},\ o_{t}^{i})$	Categorical
Transition Predictor	Generation	$z_{t}^{i} \sim p_{\phi}(z_{t}^{i} \mid h_{t}^{i})$	Categorical
State Predictor	Generation	$s_{t} \sim p_{\phi}(s_{t} \mid h_{t},\ z_{t})$
Team Reward Predictor	Generation	$r_{t} \sim p_{\phi}(r_{t} \mid h_{t},\ z_{t})$
Discount Predictor	Generation	$\gamma_{t} \sim p_{\phi}(\gamma_{t} \mid h_{t},\ z_{t})$

Following Dreamer v3, the twohot symlog module is adopted as the final output head for the reward predictor

The overall loss function for world model is

$\mathcal{L}(\phi) = \mathcal{L}_{\mathrm{pred}}(\phi) + \beta_{\mathrm{dyn}} \mathcal{L}_{\mathrm{dyn}}(\phi) + \beta_{\mathrm{rep}} \mathcal{L}_{\mathrm{rep}}(\phi)$

where

$\begin{gathered} \mathcal{L}_{\mathrm{pred}}(\phi) = -\ln p_{\phi}(s_{t} \mid h_{t},\ z_{t}) - \ln p_{\phi}(r_{t} \mid h_{t},\ z_{t}) - \ln p_{\phi}(\gamma_{t} \mid h_{t},\ z_{t}) \\[5mm] \mathcal{L}_{\mathrm{dyn}}(\phi) = \sum_{i = 1}^{n} D_{\mathrm{KL}} \Big( \operatorname{sg}(q_{\phi}(z_{t}^{i} \mid h_{t}^{i},\ o_{t}^{i}))\ \|\ p_{\phi}(z_{t}^{i} \mid h_{t}^{i}) \Big) \quad \mathcal{L}_{\mathrm{rep}}(\phi) = \sum_{i = 1}^{n} D_{\mathrm{KL}} \Big( q_{\phi}(z_{t}^{i} \mid h_{t}^{i},\ o_{t}^{i})\ \|\ \operatorname{sg}(p_{\phi}(z_{t}^{i} \mid h_{t}^{i})) \Big) \end{gathered}$

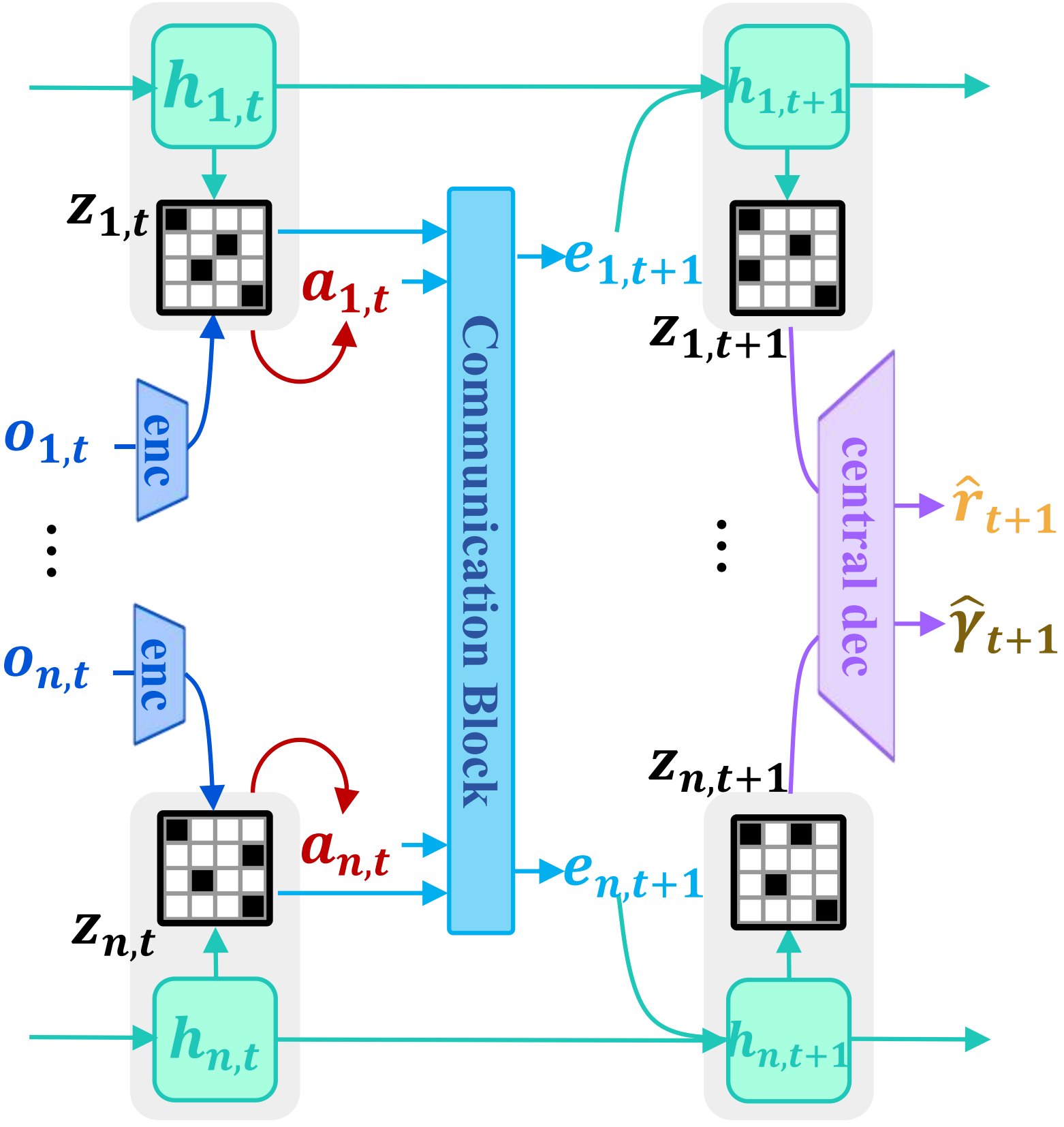

Behavior Learning

The agent-wise policy $\pi_{i}(a_{t}^{i} \mid h_{t}^{i},\ z_{t}^{i};\ \theta_{i})$ is optimized by PPO with counterfactual advantage

$\mathcal{J}_{\mathrm{actor}}^{\mathrm{MACD}}(\theta_{i} \mid \theta_{i}^{\mathrm{old}}) = \sum_{t = 0}^{\mathrm{T}} \min \left[ \frac{\pi_{i}(a_{t}^{i} \mid h_{t}^{i},\ z_{t}^{i};\ \theta_{i})}{\pi_{i}(a_{t}^{i} \mid h_{t}^{i},\ z_{t}^{i};\ \theta_{i}^{\mathrm{old}})} A_{t}^{i},\ \operatorname{clip} \left( \frac{\pi_{i}(a_{t}^{i} \mid h_{t}^{i},\ z_{t}^{i};\ \theta_{i})}{\pi_{i}(a_{t}^{i} \mid h_{t}^{i},\ z_{t}^{i};\ \theta_{i}^{\mathrm{old}})},\ 1 - \epsilon,\ 1 + \epsilon \right) A_{t}^{i} \right]$

where the counterfactual baseline is calculated through $H_{c}$ step rollout under default action $d$

$A_{t}^{i} = q_{\pi}(h_{t},\ z_{t},\ a_{t}^{i},\ a_{t}^{-i}) - q_{\pi}(h_{t},\ z_{t},\ d,\ a_{t}^{-i}) \approx \sum_{k = 0}^{H_{c} - 1} \gamma^{k} r_{t + k + 1} + \gamma^{H_{c}} v_{\psi}(h_{t + H_{c}},\ z_{t + H_{c}}) - \sum_{k = 0}^{H_{c} - 1} \gamma^{k} r_{t + k + 1}^{\mathrm{MACD}}$

The critic $v_{\psi}(h_{t},\ z_{t})$ also uses the twohot symlog module and is optimized to minimized the $H$ step TD error
